It has been a quiet tropical activity over the western Pacific lately, but there is now a Tropical Storm Chan-hom on the way for Japan this week. An organizing depression is forecast to become an intense typhoon and threaten southwestern Japan with floods and severe winds later this week.

*** IMPORTANT UPDATE – SEE BELOW ***

A mean-looking typhoon Chan-hom will strike Japan with severe winds and heavy rainfall threat on Thursday


The storm has developed at the latitude 22 degrees north, which is a quite rare occurrence for October. Typically, only 10 percent of October tropical storms form north of the latitude 20°N over the Western Pacific. This indicates the seas are extremely warm.

Chan-hom is rapidly gathering strength towards the typhoon status, over very warm Philippine Sea waters, located still quite far south of Japan. The powerful storm is expected to approach the southwestern part of the country sometime on Thursday and Friday this week. Chan-Hom could be devastating for Kyushu Islands, Japan.

Satellite imagery analysis

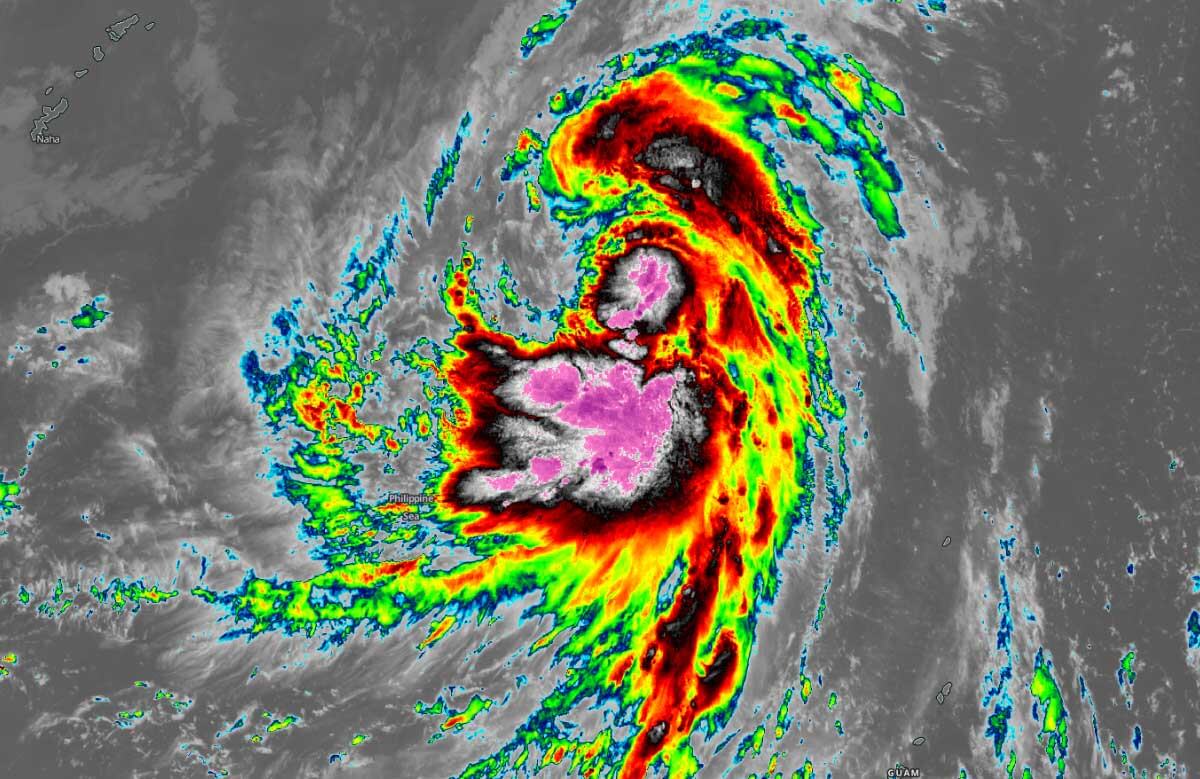

Chan-hom has begun its faster intensification today, as seen by the strengthening storms around the surface low. Explosive convective towers with very high (cold) cloud tops are visible. The attached MODIS infrared satellite scan reveals that the cloud tops temperatures are below -85 °C.

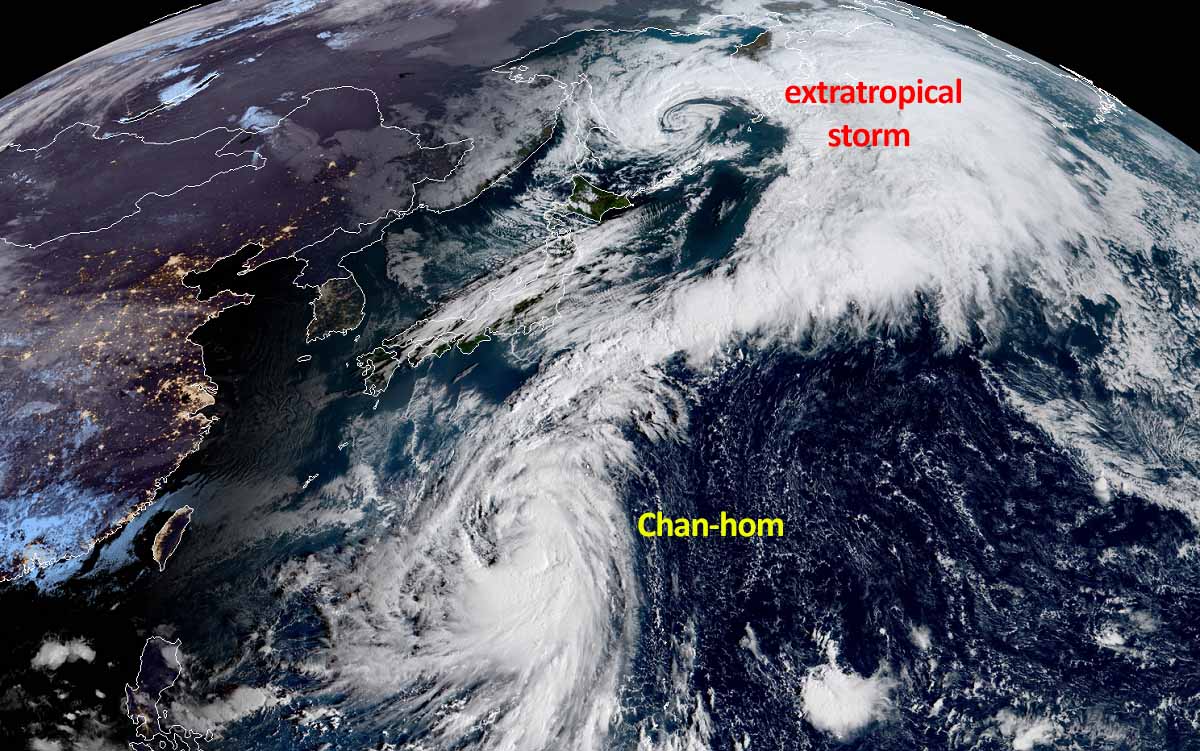

A wider satellite image reveals a frontal system is ejecting to the east of Japan, associated with the large extratropical storm centered over the Sea of Okhotsk.

While the organizing tropical depression is seen further south, over the Philippines Sea. Although there is some drier air to the northwest of the storm, Chan-hom will keep strengthening while heading towards Japan.

Chan-hom is likely to begin a rapid intensification process sometime over the next 24-36 hours, as it is tracking across very favorable oceanic conditions. It is expected to become a typhoon soon, likely reaching a Category 2 strength by Thursday.

Based on the latest Advanced Dvorak Technique (ADT) analysis estimates, Chan-hom is gradually strengthening and becoming a strong tropical storm. ADT estimates suggest the maximum sustained winds now are around 35 knots with the minimum central pressure near 997 mbar. Its wind field is growing.

Near-record hot ocean waters



When Chan-hom intensifies into a typhoon over the next day or so, it is expected to turn towards Japan. The general northwesterly track is forecast, bringing the typhoon into the extremely warm, near-record hot waters for most of its lifecycle.

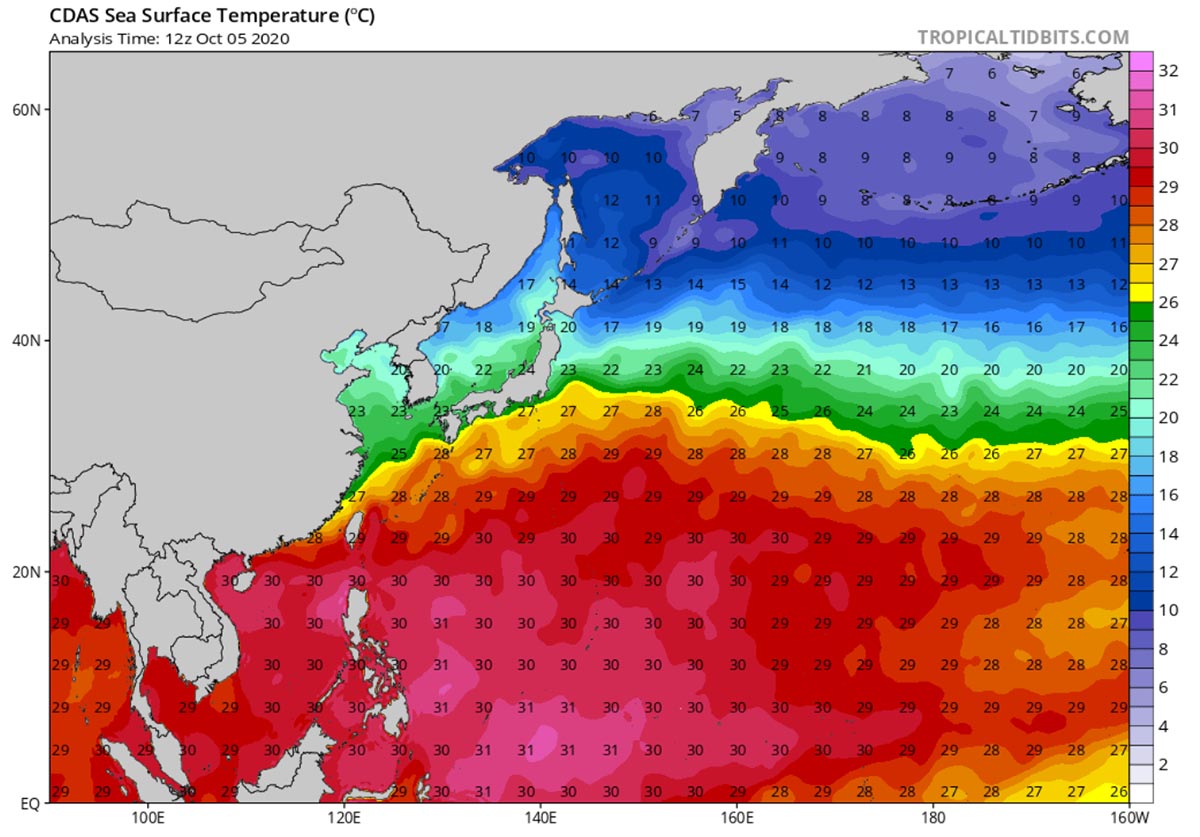

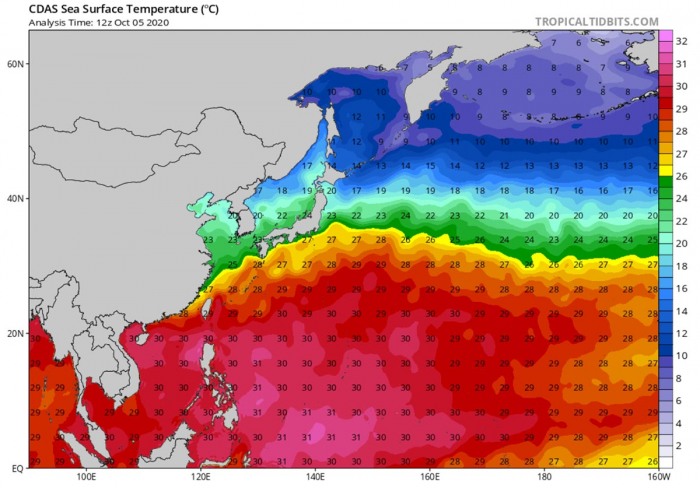

29-31 °C is spread across the whole western Pacific and also very warm to the south of Japan. Right where Chan-hom will be moving.

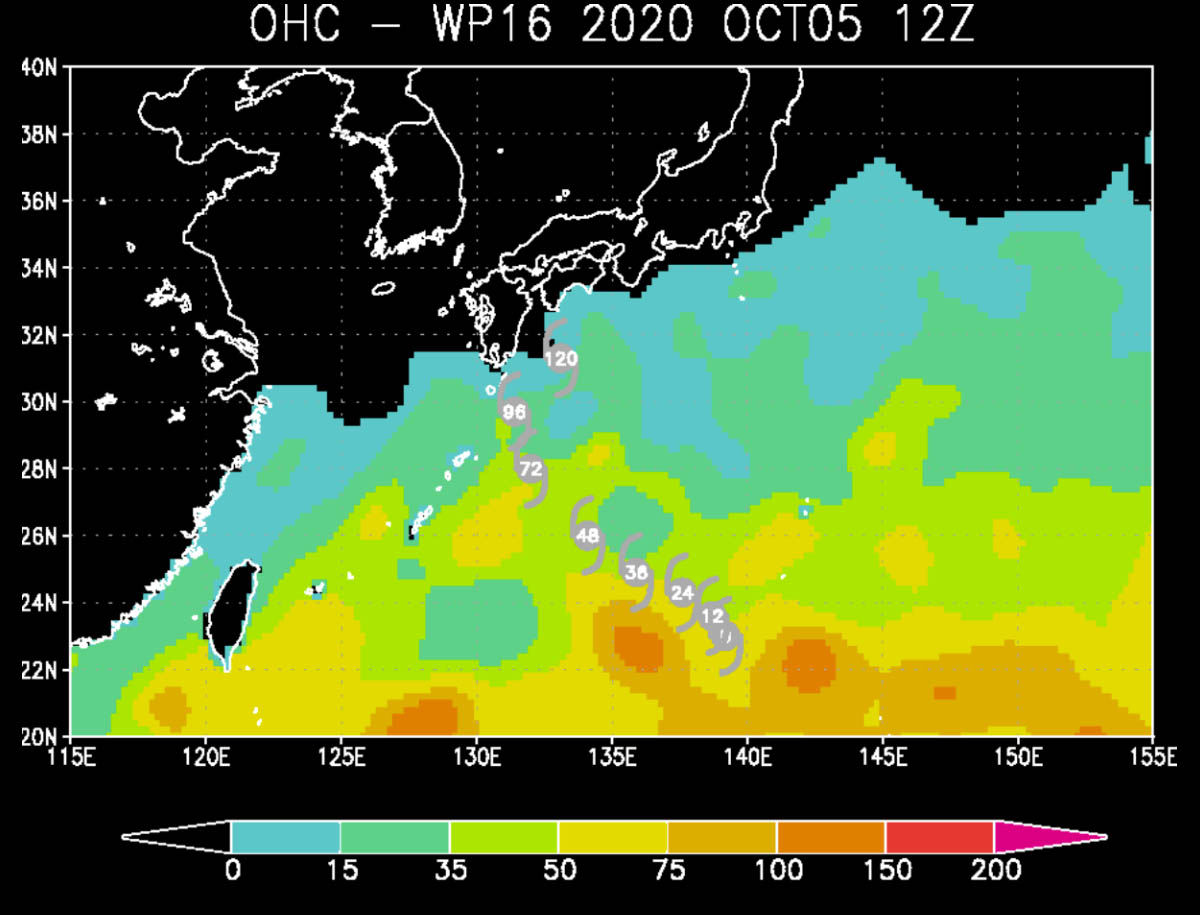

Typhoon Chan-hom should track across these extremely favorable oceanic conditions for the next 72 hours. Also, low wind shear is present along the track of the typhoon until it reaches Japan, allowing it to continue strengthening.

As typically over the past years, the Western Pacific Ocean waters are very warm and locally even hot. As seen above, around 31 °C over the Philippines Sea. This region has around 1 °C warmer seas than normal.

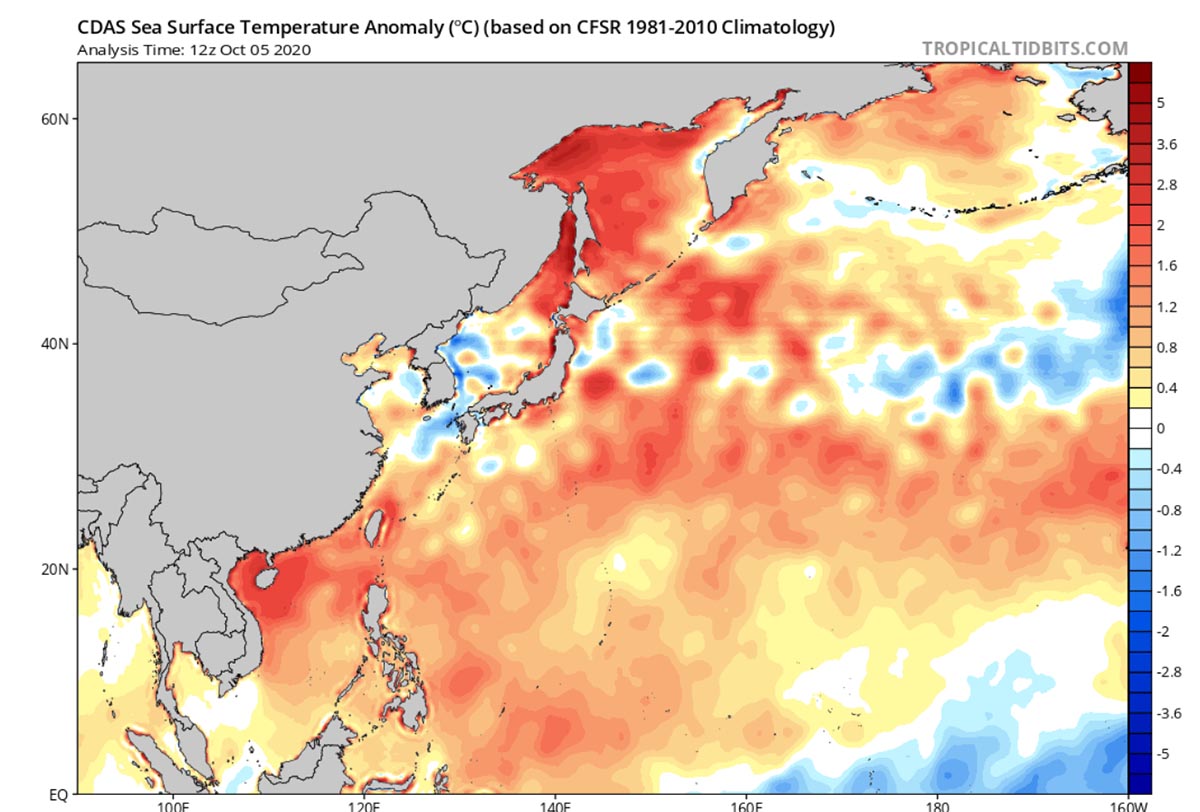

Even stronger sea surface temperature anomaly is further north, roughly 2-3 °C above the long-term average. Precisely across the South China Sea, around Taiwan, and over the Sea of Okhotsk.

Storms fueling the typhoon’s strength with these very hot, near-record values of ocean waters and moist mid-level atmosphere, should support further (rapid) intensification.

The next 48 hours (through Tuesday and Wednesday) will be crucial for its strengthening. It is often seen that this area with hot seas leads to the explosive intensification of tropical storms/typhoons.

Forecast track for Chan-hom

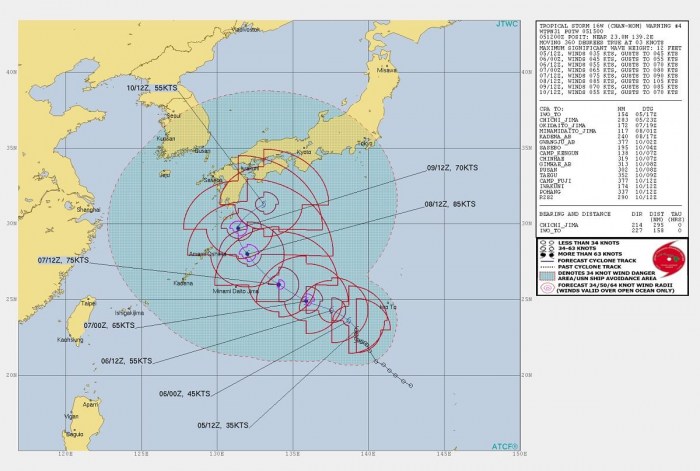

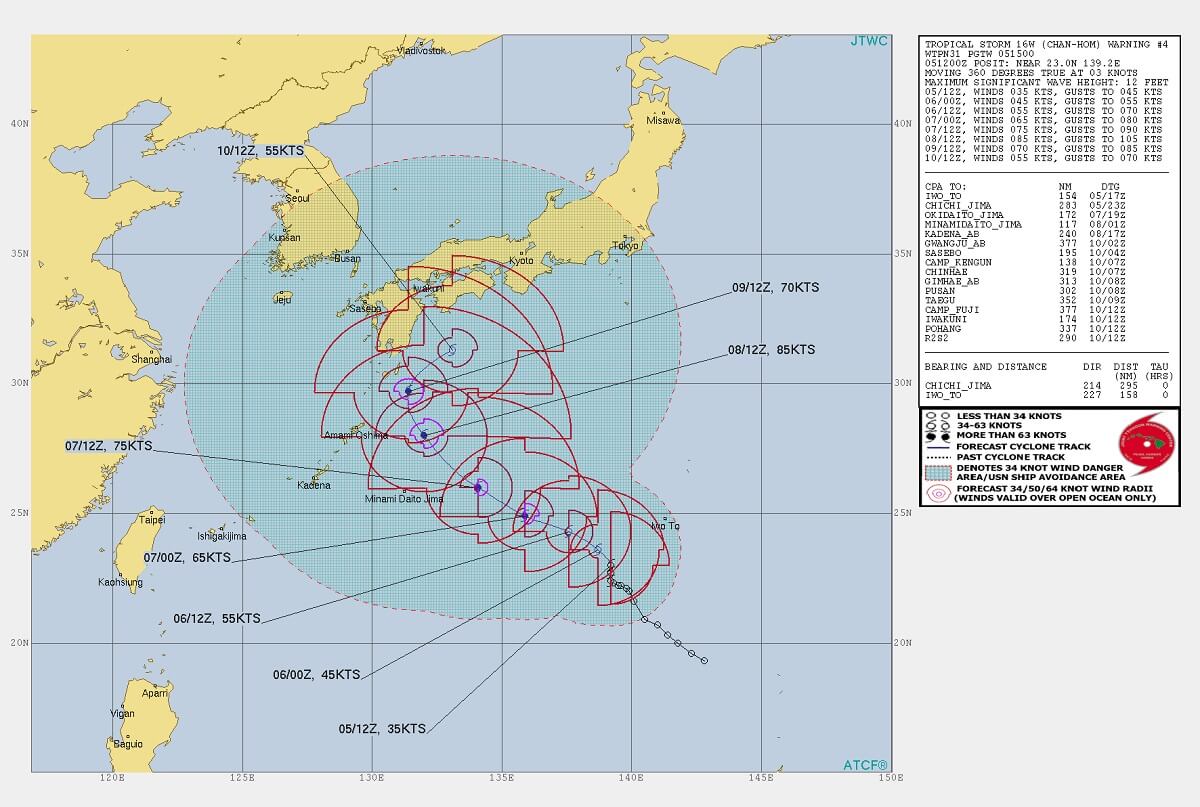

Chan-hom is forecast to track generally northwest for another 24 hours, then taking a more west-northwesterly route about a day. After Wednesday, the typhoon turns towards Kyushu Islands, Japan. Chan-hom will be gathering strength and expanding its wind field until the peak intensity around Thursday.

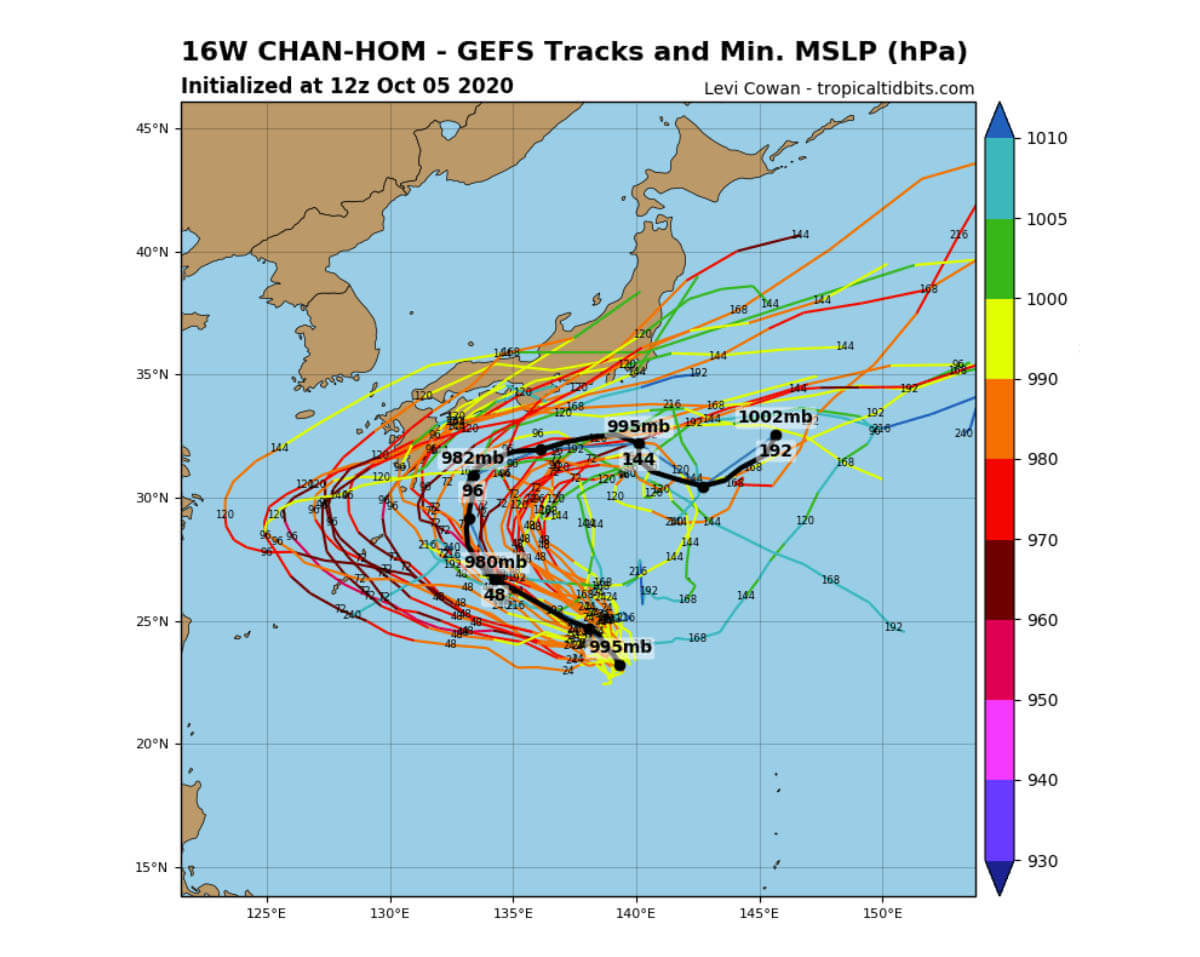

Although Chan-hom is still organizing and the typhoon status is not officially set, the majority of the ensemble GEFS model perturbations are tracking Chan-hom towards the island Kyushu, or very near to its southern coast.

It has to be noted that there are still many uncertainties regarding the exact track of the typhoon. There are also possibilities typhoon may completely miss Japan to its south, so the impact will be the most significant offshore.

Attached is the video animation of the 10-meter winds, surface pressure and peak wind gusts simulation. Chan-Hom could become a strong typhoon, traveling towards the Kyushu Islands and Japan mainland later this week.



Chan-hom seems to be taking a similar track as the last typhoon Dolphin around 10 days ago.

After Chan-Hom ejects off Japan, it transitions into an extratropical storm and accelerates towards the North Pacific. This should happen by early next week.

Rainfall and severe winds threat



A dangerous situation is developing, as part of Japan could be severely hit by a violent wind, storm surge, and a tremendous amount of rain with flooding.

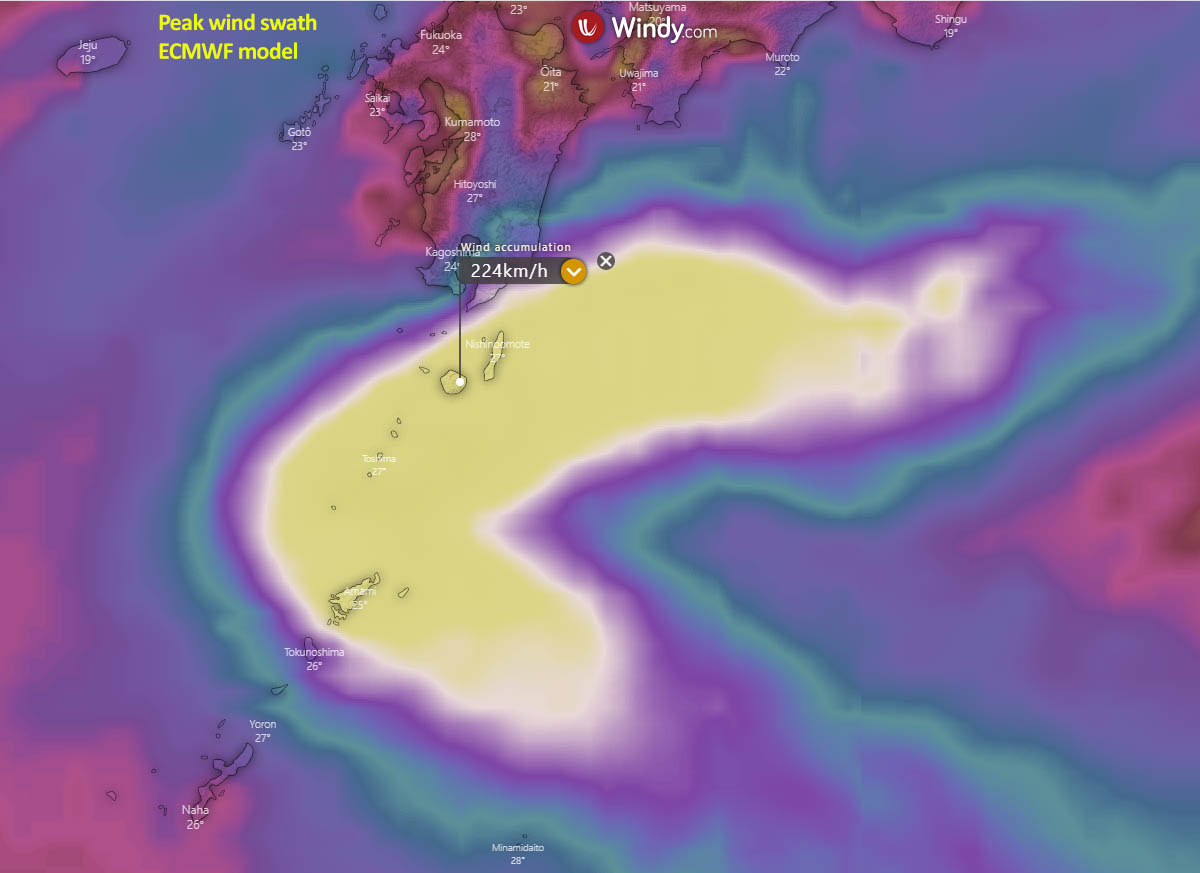

Attached graphics by Windy.com indicate that the ECMWF model is forecasting Chan-hom could become a violent typhoon while moving across the northern Ryukyu islands through Thursday and Friday. Extreme winds are simulated by this model.

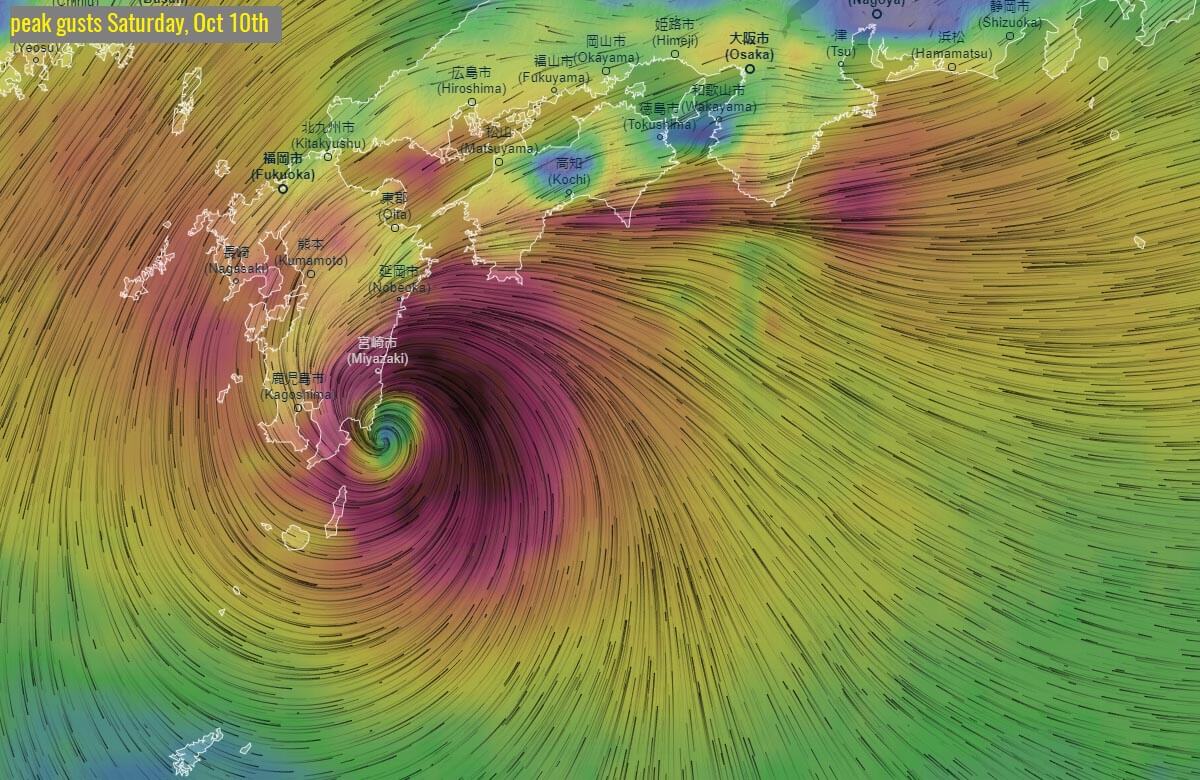

The other global model GFS is, however, hinting a less intense typhoon but still a very strong wind field. Here is a sample forecast from today’s 12 UTC model run, during the Chan-hom approach on Saturday.

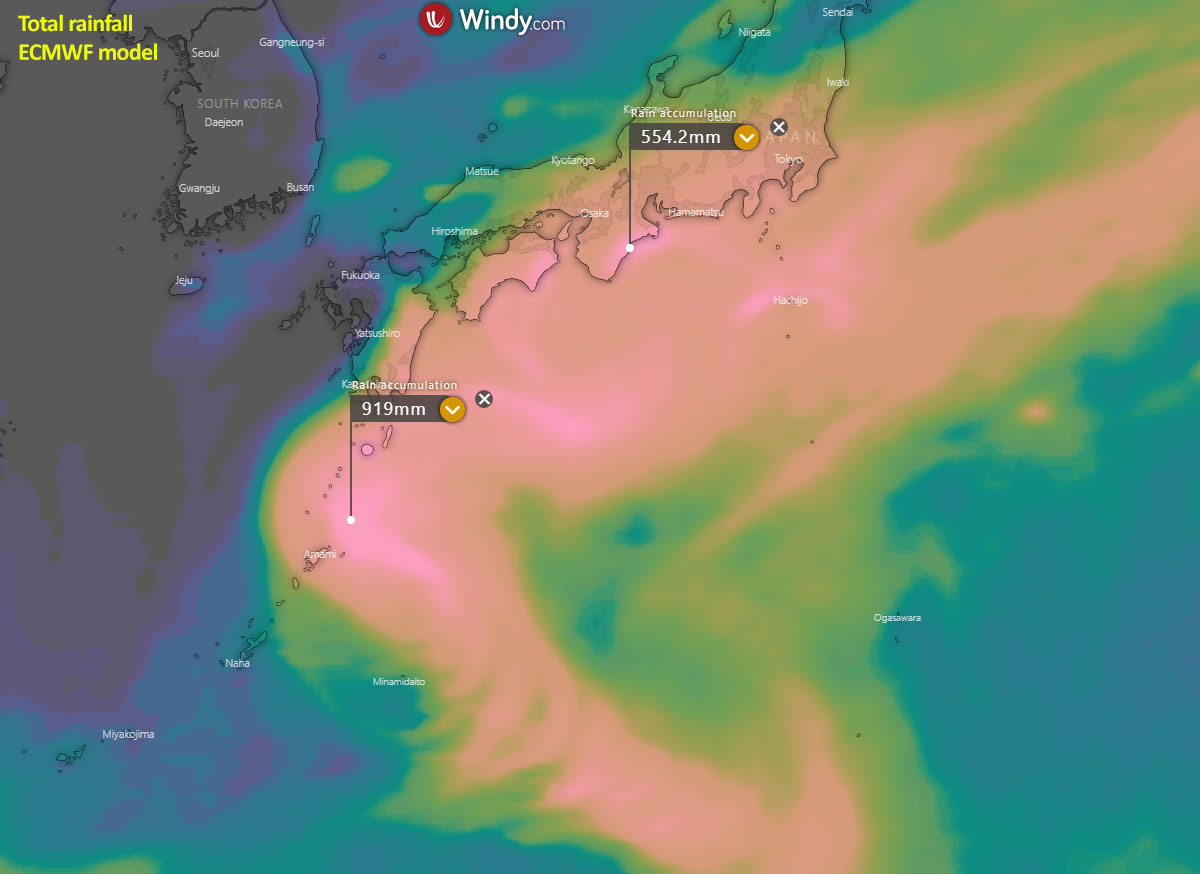

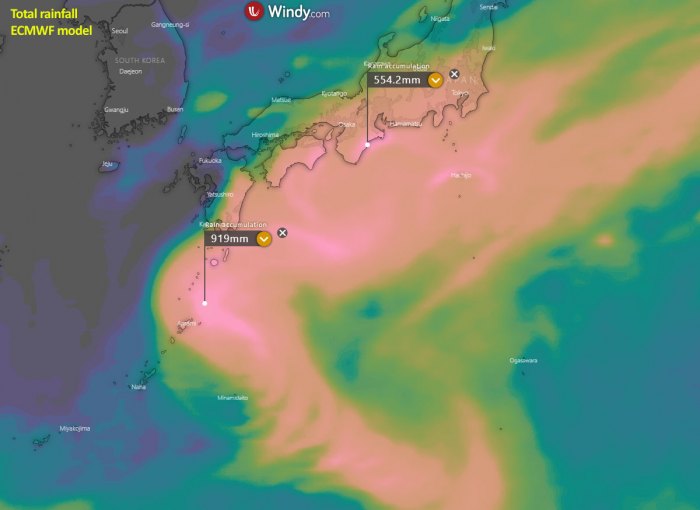

A significant amount of rainfall is expected along the track of this typhoon, especially across southern Japan and the Ryukyu Islands. The ECMWF model is hinting a tremendous amount of rainfall possible – close to 900 mm across the northern Ryukyu islands over the next 10 days!

Soon after the pass over the Ryukyu islands, typhoon Chan-hom will likely begin weakening while heading towards Japan. Still, torrential rain will remain and the amount of rain could locally reach 400-500 mm.

What is a typhoon



Hurricanes and Typhoons are the most powerful tropical weather events on Earth. A typhoon is a mature tropical cyclone, forming in the western Pacific (they normally develop between 100° and 180° East in the Northern Hemisphere) and heading towards Asia.

The region typhoons form is referred to as the Northwestern Pacific Basin. It is the most active tropical cyclone basin on Earth, accounting for almost one-third of the world’s annual tropical cyclones forming.

Typhoon formation


There are several ingredients that lead to tropical cyclogenesis: warm sea surface temperatures of above 26 °C, high atmospheric instability, and high humidity in the lower/middle levels of the troposphere.

And the final environmental support with upper-level divergence, supporting the upward motion for deep convective storms to develop.
At the surface, a pre-existing low-level wave or disturbance develops and moving through an environment with low vertical wind shear. A tropical cyclone gets designated to a typhoon when maximum sustained winds are above 64 knots (73 mph or 118 km/h).

If winds exceed 130 knots (150 mph or 241 km/h), the typhoon is upgraded to a Super typhoon.

Water vapor analysis of tropical cyclones indicates the potential a tropical system has to develop. Water vapor releases latent heat as it condenses into a liquid. That liquid then form clouds and thunderstorms, gradually organizing into a tropical cyclone.

Typhoons often have very high cloud tops, even below -85 °C or -90 °C sometimes. There is a rough projection – the higher the cloud tops, the colder and the stronger tropical cyclones are.

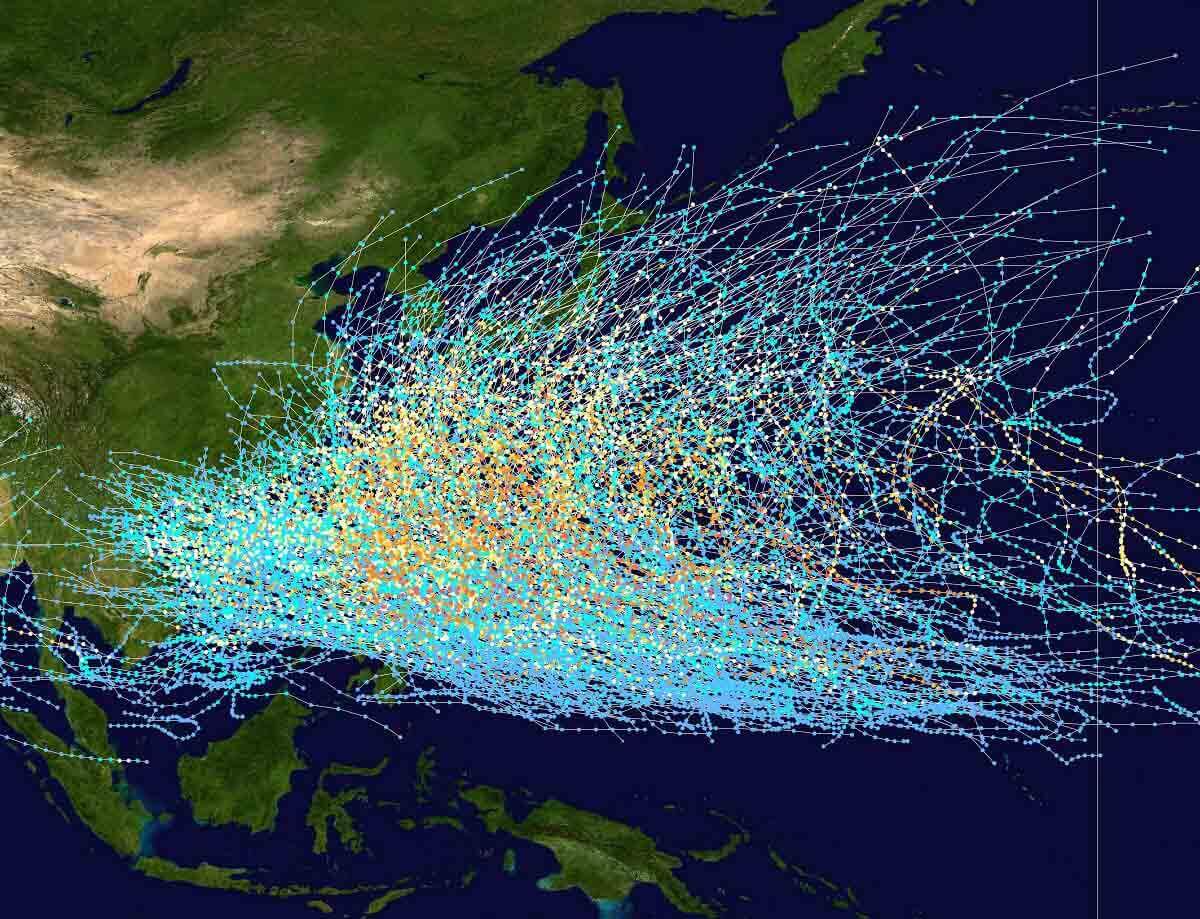

Typhoon frequency and tracks



On average, there are more than 26 tropical storms and typhoons every year. Systems have a general westward track towards the Philippines, southern China, Taiwan, and Vietnam.

There are some rare events than a tropical cyclone formed east of the 180° East longitude, over the central Pacific, and travel westward into the western Pacific and continue as typhoons.

Conclusion



Some uncertainties remain how intense typhoon Chan-hom could form over the next two days, but it is very likely to become a strong one. Taking the extremely warm seas and favorable oceanic conditions into the consideration, the system has the proper ingredients to develop a strong wind field and head towards Japan.

The further development of Chan-hom is being monitored, so stay tuned for further updates over the coming days when stronger typhoon strength emerges!
